Vertical Extractor

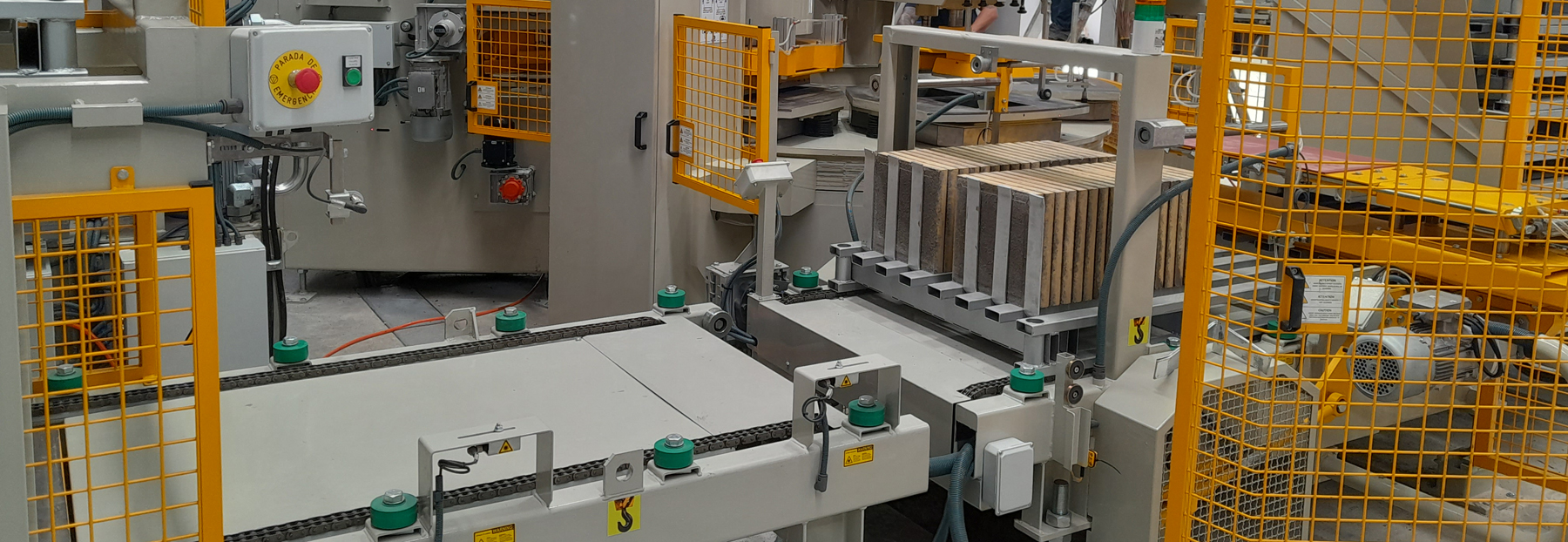

The VERTICAL EXTRACTOR is an alternative automation system to the Horizontal Extractor, although it is completely different. This machine has an extractor carriage that enters the Press mold to extract the tiles and deposit them in vertical position on metal pallets.
PROCESS
Entrance of a metal pallet tower directly into the automatic unstacker
Unstacking of metal pallets to go through one by one
Lifting metallic support that will support the first tile row
Discharge of the tiles, using the extractor carriage, in vertical position
Once the pallet is completed, an operator will place some support brackets to avoid the overturning of the tiles and pillars for stacking
Stacking of 2 to 3 loaded metal pallets, to form towers
KEY FEATURES

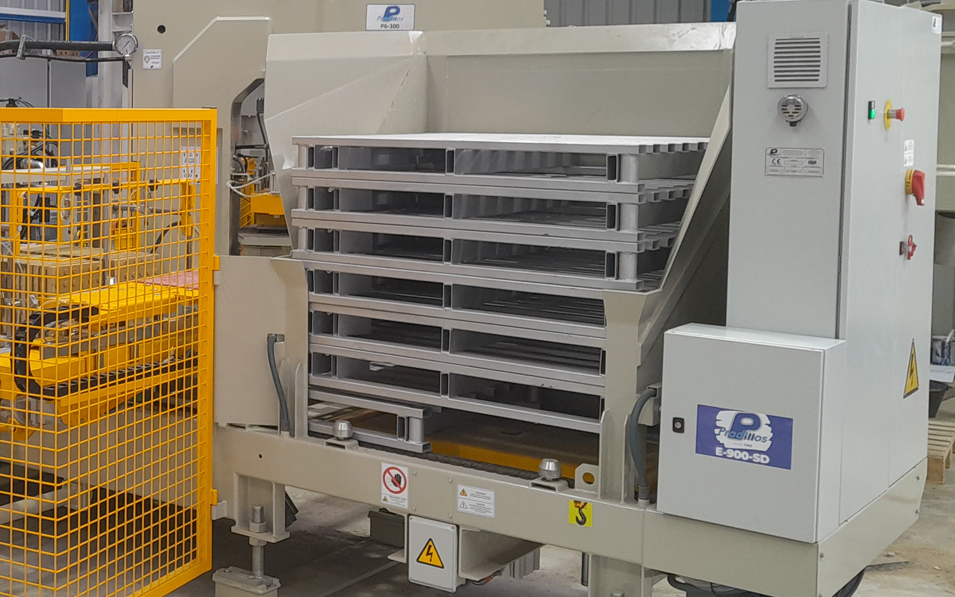

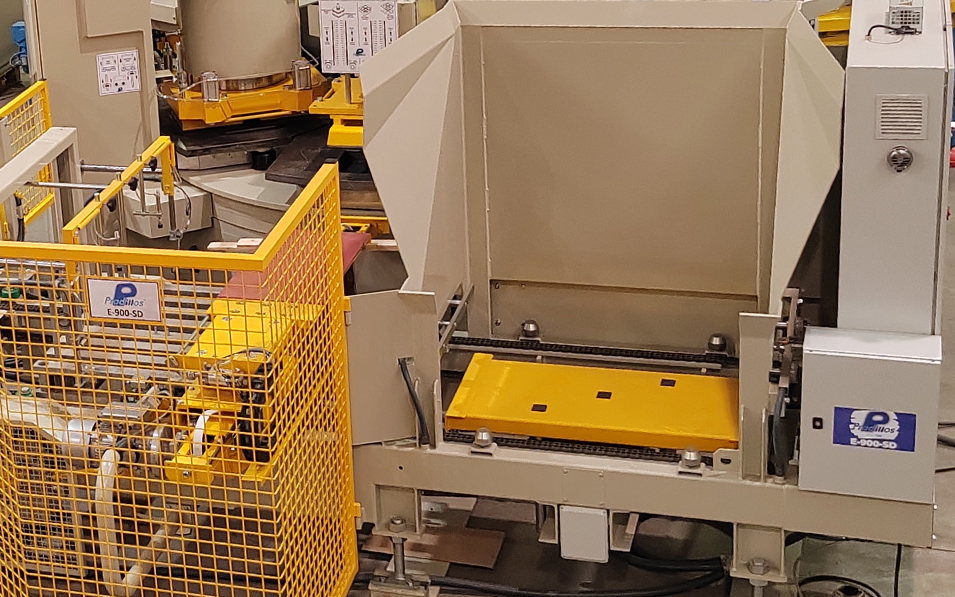

PALLET UNSTACKER
Storage and unstacking of empty metal pallets, by the use of a large pneumatic cylinder.
Pallet connection grippers, by pneumatic cylinder.
Pallet chain conveyors to move to the loading area.

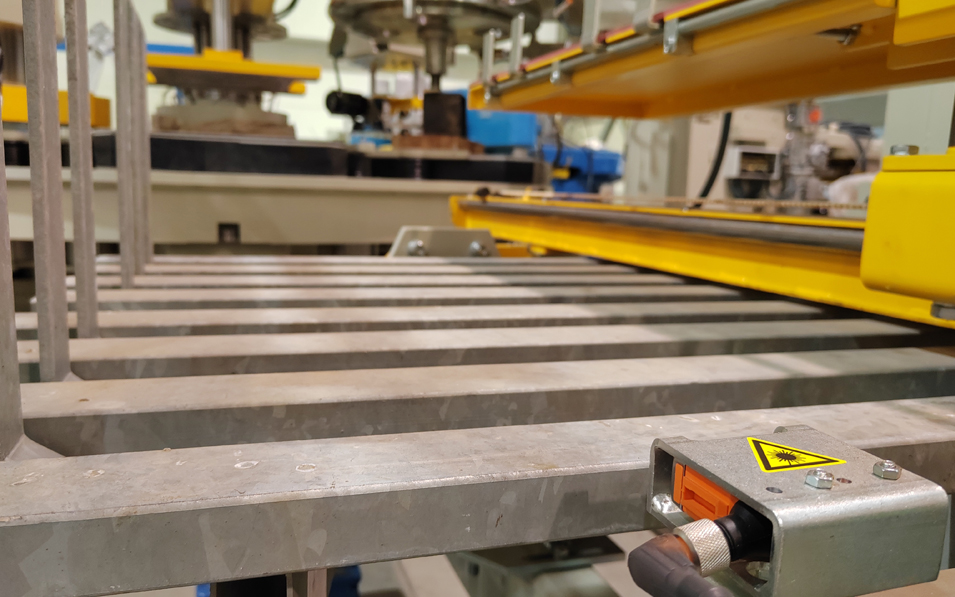

STEEL PALLETS
Possibility of choosing between 2 pallet widths, depending on whether you wish to deposit 1 or 2 tile rows of 400x400mm.
Available pallet sizes: 1.150x700mm and 1.150x900mm.
Supplied with final support to prevent overturning of loaded tiles and pillars for stacking.

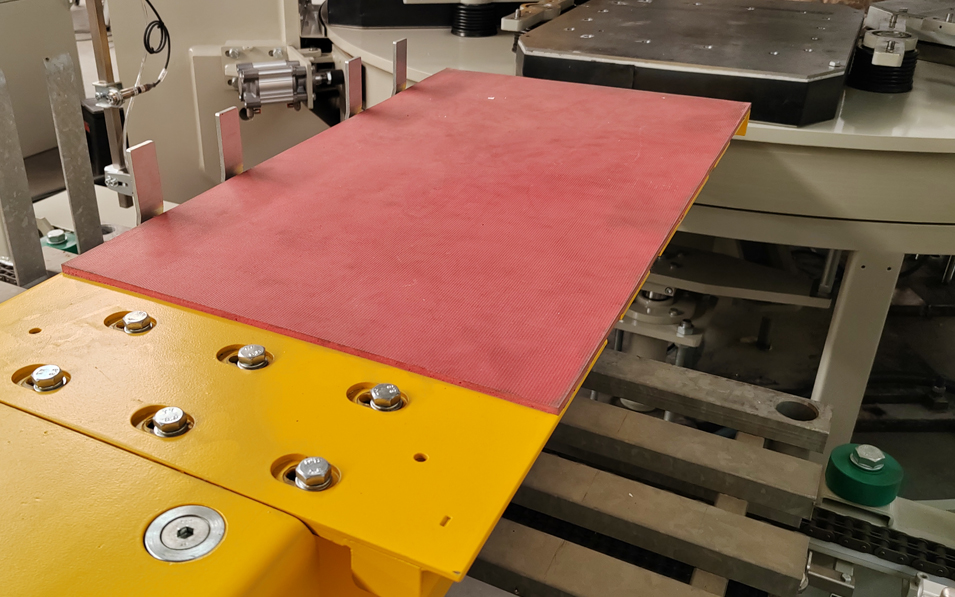

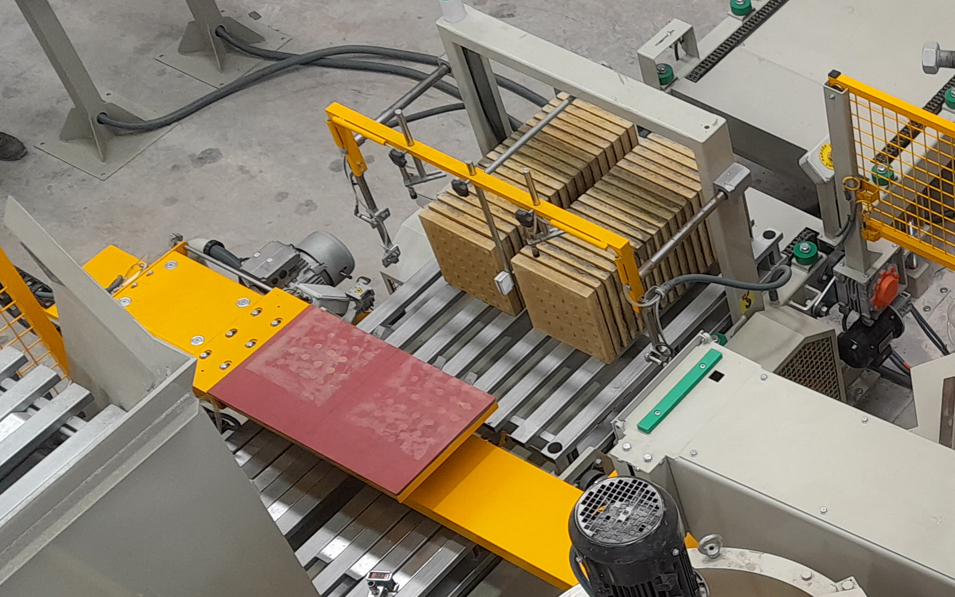

EXTRACTOR CARRIAGE
Extraction carriage with displacement by belt and toothed pulleys.
Equipped with an encoder for different positioning, depending on whether there are one or two positions on the pallet.
Turning of the extractor carriage by the use of a rod drive.
Pneumatic grippers in the carriage to hold the tiles at the turning moment.
Tile fall or break detection system.

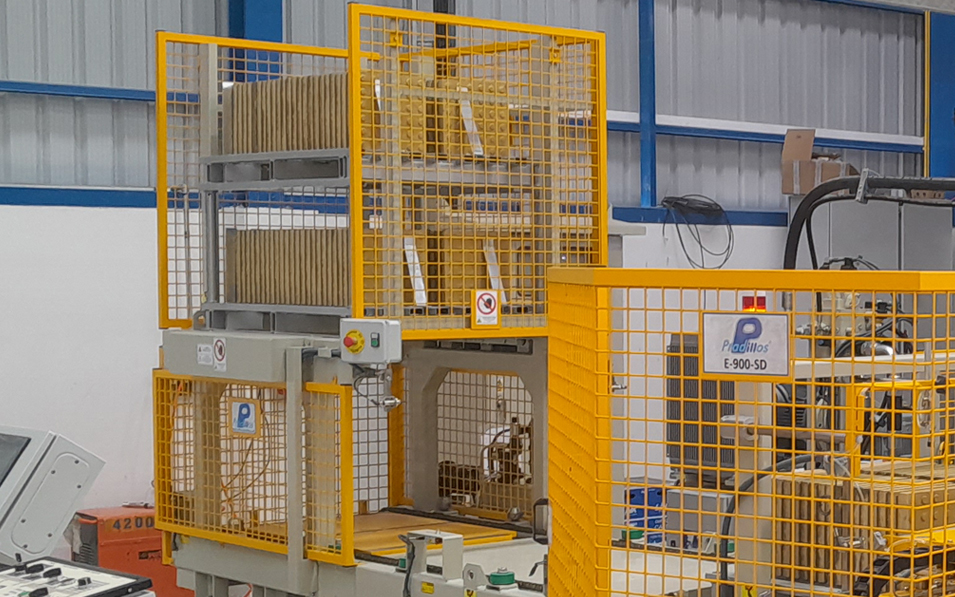

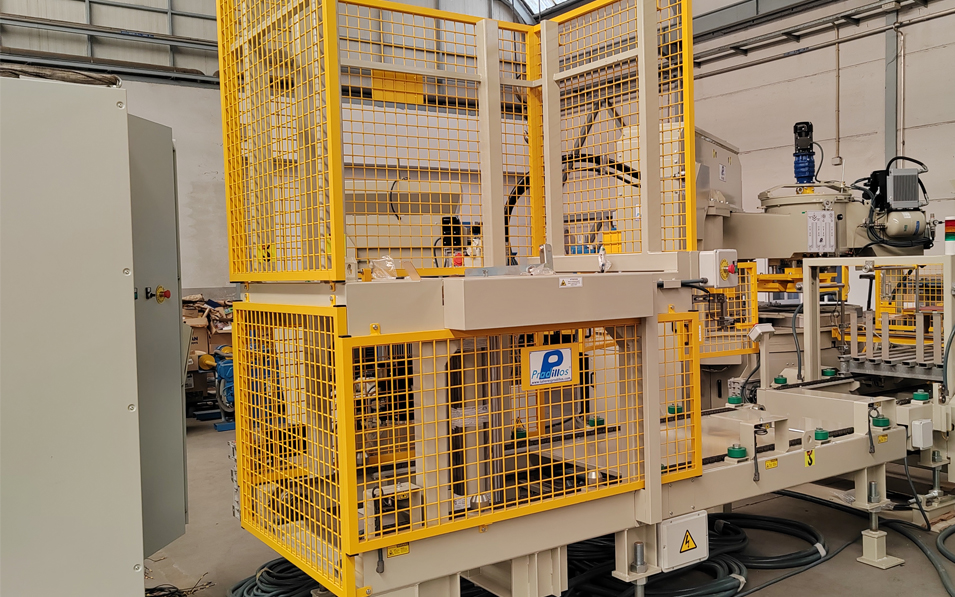

STACKER
Storage and stacking of loaded metal pallets, by the use of a large hydraulic cylinder.
Pallet connection grippers, by pneumatic cylinder.
Chain pallet conveyors to move to the stacking area.
Option to install an automatic system, to detect that the pallet pillars are placed, before entering the stacker.
CONTROL SYSTEM

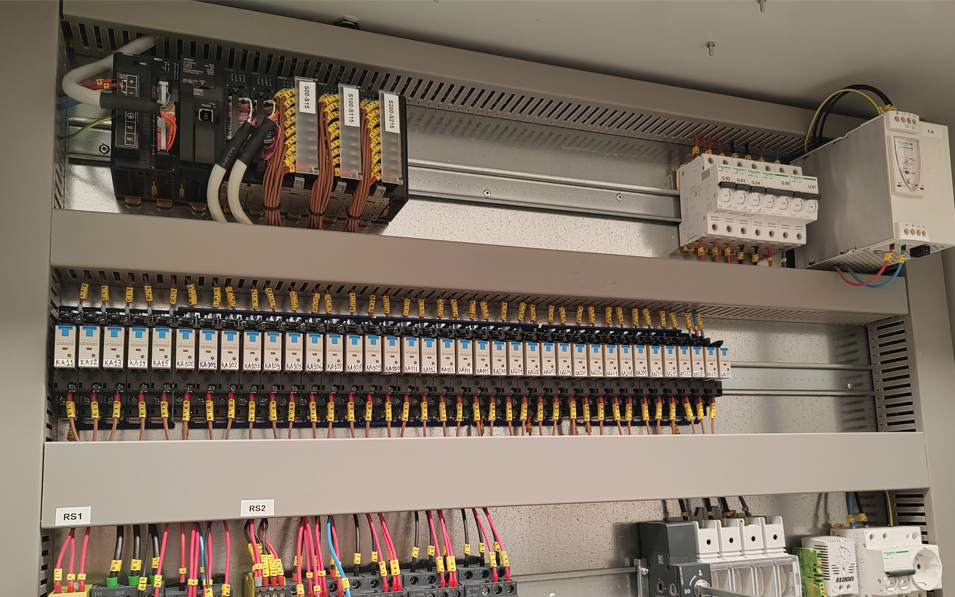

Complete electrical cabinet, with PLC control, for automatic operation of the entire installation.

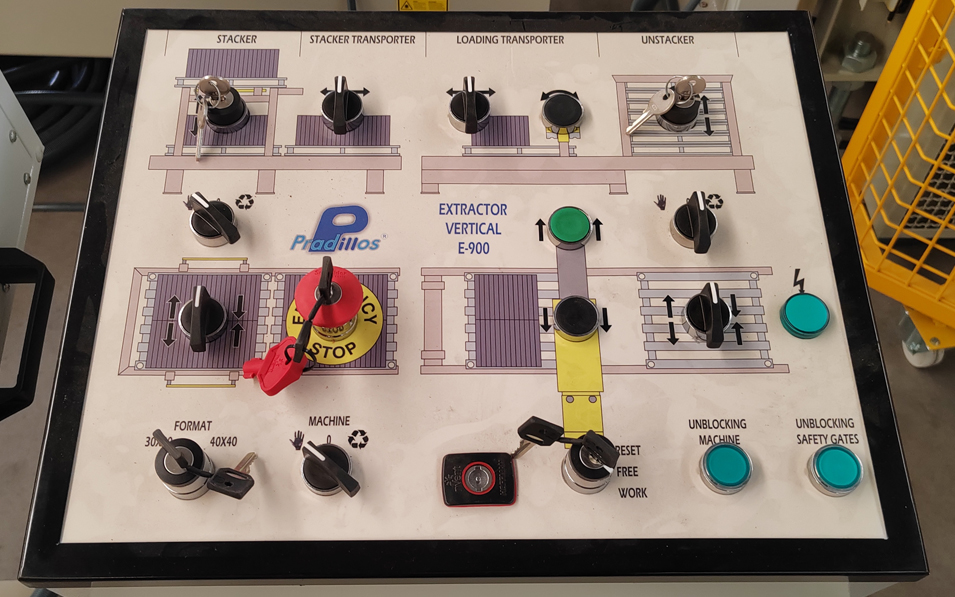

Control panel for the operating mode selection and total control of all elements manually.
Approved and integrated safety systems for the protection of machine operators.
AVAILABLE MODELS
E-700
Overall dimensions 6.950 (L) x 2.580 (W) x 2.520 (H) mm
Total weight 3.450 kg.
Power 4,1 Kw
Steel pallet width 700 mm
Tile rows 2 - 300 X 300 mm
2 - 333 X 333 mm
1 - 400 X 400 mm
1 - 400 X 600 mm
1 - 500 X 500 mm
Production Up to 360 cycles/hour
E-900
Overall dimensions 6.950 (L) x 2.580 (W) x 2.520 (H) mm
Total weight 3.450 kg.
Power 4,1 Kw
Steel pallet width 900 mm
Tile rows 2 - 300 X 300 mm
2 - 333 X 333 mm
2 - 400 X 400 mm
1 - 400 X 600 mm
1 - 500 X 500 mm
Production Up to 360 cycles/hour
